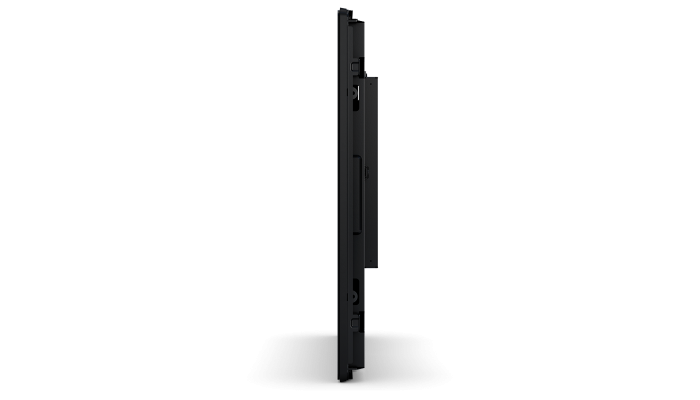

1990L 19″ Open Frame Touchscreen (Rev B)

The Elo 1990L 19-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1990L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Contact Category Manager SKU: 701859 (E330817) Category:

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1990L is available in a industry-leading TouchPro™ PCAP two-glass solution (2GS) technology that has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • LED backlighting allows for state-of-the-art slim design while reducing power consumption
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
  • HDMI, VGA & Display Port video interfaces

Specifications

Part Number(s)

TouchPro PCAP – E330817

Enclosure Colour

Black

Touch Technology & Capacity

PCAP (TouchPro® Projected Capacitive) – 10 Touch

Touch Interface

USB 2.0

Diagonal Size

19” diagonal, Active matrix TFT LCD (LED)

On Screen Display

Accessible through switches on the unit’s tethered OSD Control box.

Controls: Menu, Up, Down, Select, Power

Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Lockouts: OSD, Power

Aspect Ratio

5:4

Active Area

376.32mm x 301.06mm

Resolution

1280 x 1024

Other Supported Resolutions

640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz

Viewing Angle

Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total

Number of Colours

16.7 million

Brightness (typical)

225 nits

Response Time-total (typical)

5 msec

Contrast Ratio

1000:1

Input Video Format

HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a – Supports later versions of Display Port video input

Input Video Frequency

Horizontal: 30 – 82 KHz
Vertical: 50 – 75 Hz

Video Interface

HDMI, VGA & Display Port

Power Supply

External DC – Optional power brick (sold separately)

Input Power Connector (Monitor)

Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)

Input Voltage

12VDC +/- 5%

Adapter Output Power Connector

DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)

Power Consumption (Typical)

Monitor + Adapter at 230V/50Hz
ON: 22 W
SLEEP: 1.5 W
OFF: 0.5W

Dimensions

420.1mm x 348.1mm x 40.7mm

Shipping Box Dimensions

Weight (Unpackaged)

4.6 Kg

Weight (Packaged)

7.0 Kg

Operating Temperature

0°C to 40°C

Storage Temperature

-20°C to 60°C

Humidity

Operating: 20% to 80%; Storage: 10% to 95%

Sealability

Touchscreen sealed to bezel; Touchscreen sealed to LCD

MTBF

Warranty

Regulatory approvals and declarations

Mounting Options

What’s in the Box
