Processing power.
The touchscreen computer offers the processing power needed for seamless engagement in any environment with the latest Intel processors. The 6th-generation Intel Skylake i5 with HD530 graphics offers top-end performance. The I-Series for Windows is pre-installed with Windows 10.
Integrated touch.

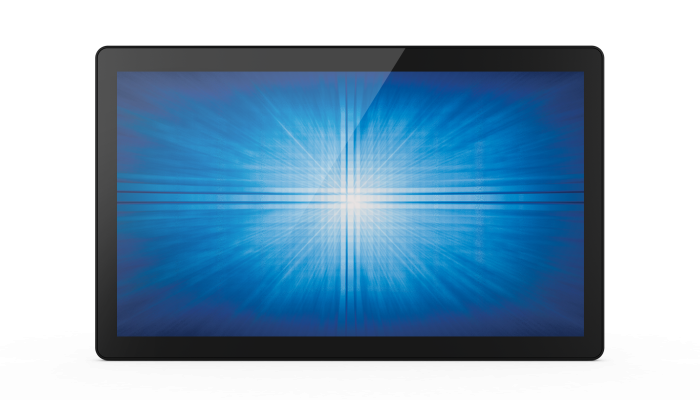

The 22 inches wide-format display I-Series for Windows all-in-one touchscreen features our industry-leading TouchPro® projective capacitive (PCAP) technology that provide a 10-touch tablet-like interactive experience. With edge-to-edge glass, it is easy to clean with no edges to trap dirt and grease.
Configured perfection.
Create additional interactive touchpoints with our built-in Bluetooth and optional peripherals, including near-field communication (NFC/RFID), mag strip reader (MSR), barcode reader and other general purpose analog I/O (GPIO) accessories. Or add a stand and a customer-facing display to create a seamless point of sale system.
Commercial grade.
The 22-inch I-Series delivers the quality and reliability Elo is known for, and is backed by our 3-year standard warranty, extendable to five years. Unlike tablets, the product is designed for long-term commercial use with no mechanical components (such as fans or spinning drives) and no battery. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF. The 22-inch I-Series meets EN62262 IK06 & UL60950 ball drop impact protection.
Other features.
- Micro USB for Elo peripherals (i2: 2 x USB 3.0/i5: 4 x USB 3.0)
- Wifi 802.11a/b/g/n and Bluetooth 4.0
Specifications
Part Number(s)
PCAP i5 Win10 – E971081
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Processor
Intel i5 2.3GHz (up to 3.3 GHz) 6500TE Quad-Core Processor; 6MB Smart Cache
Graphics
Intel HD Graphics 530
BIOS
AMI
Memory (RAM)
4GB DDR4 SODIMM on 1 of 2 slot (Expandable to 16GB)
NOTE: Maximum memory using 2 available slots; Replaceable up to 16GB maximum, SODIMM DDR4-2133
Storage
128GB 2.5″ 7mm SATA SSD
Diagonal Size
21.5” diagonal, Active matrix TFT LCD (LED)
On-Screen Display (OSD)
Power, Brightness Up, Brightness Down, Volume Up, Volume Down
Aspect Ratio
16:9
Active Area (mm)
476mm x 267.8mm
Resolution
Full HD 1920 x 1080 @ 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colours
16.7 million
Brightness (typical)
LCD Panel: 250 nits
PCAP: 225 nits
Response Time-total (typical)
30 msec
Contrast Ratio
3000:1
AV Capability
Front-facing HD webcam
Stereo speakers
USB Ports
4 x USB 3.0, 3 x Micro USB for Elo peripherals
Ethernet Port
1 x LAN RJ45 (Gigabit)
Wireless
Wi-Fi 802.11 a/b/g/n/ac
Bluetooth
Bluetooth 4.0
Additional Video Out
2nd Micro HDMI out
Audio Ports
1 x 3.5mm line out
Speakers
2 x 2W internal speakers
OS
Windows 10
Power
Maximum output power: 150W (Max Draw: 170W)
Power Supply
External 19VDC universal-type power supply brick
Input Voltage
100 – 240 VAC 50/60Hz
Power Consumption (Typical)
90.63 W
Dimensions
524mm x 324mm x 45mm
Shipping Box Dimensions
685mm x 493mm x 180mm
Weight (Unpackaged)
5.47 kg
Weight (Packaged)
8.03 kg
Operating Temperature
0°C to 35°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 5% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated

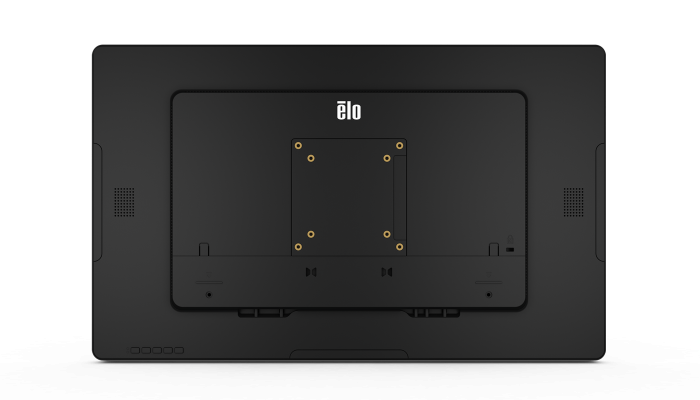

Mounting Options
Wall/pole mount or secure base to tabletop/desktop
Warranty
3-year
Regulatory approvals and declarations
UL/cUL, FCC, TUV, CB, CE, VCCI
Power Cables
Power Cables: North American and European power cables included; Other regions available upon request
What’s in the Box
Windows I-Series Touchcomputer
US Power Cable
European Power Cable
Power Adapter
Quick Install Guide
