Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available in a industry-leading single touch technology. Standard bezel is equipped with a single-touch display IntelliTouch® SAW.
Commercial grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- High quality energy-saving LED panel
- HDMI, VGA & Display Port video interfaces
Specifications
Part Number(s)
IntelliTouch – E326942
Enclosure Colour
Black
Touch Technology & Capacity
SAW (IntelliTouch® Surface Acoustic Wave) – Single Touch
Touch Interface
Dual serial/USB 2.0
Diagonal Size
17” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the unit’s tethered OSD Control box.
Controls: Menu, Up, Down, Select, Power
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Sharpness, Color Temperature, OSD Timeout, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch On Sleep Mode, Touch Through
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
Aspect Ratio
5:4
Active Area
337.92mm x 270.336mm
Resolution
1280 x 1024
Other Supported Resolutions
640 x 480 60Hz
720 x 400 70Hz
800 x 500, 60Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total
Number of Colours
16.7 million
Brightness (typical)
225 nits
Response Time-total (typical)
5 msec
Contrast Ratio
1000:1
Input Video Format
HDMI V1.3 Type A receptacle for HDMI input
Analog VGA on Female DB-15 connector
DisplayPort V1.1a – Supports later versions of Display Port video input
Input Video Frequency
Horizontal: 30 – 82 KHz
Vertical: 50 – 75 Hz
Video Interface
HDMI, VGA & Display Port
Power Supply
External DC – Optional power brick (sold separately)
Input Power Connector (Monitor)
Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) barrel depth)
Input Voltage
12VDC +/- 5%
Adapter Output Power Connector
DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) barrel length)
Power Consumption (Typical)
Monitor + Adapter at 230V/50Hz
ON: 17.8 W
SLEEP: 1.5 W
OFF: 0.5W
Dimensions
368.4mm x 306.4mm x 47.5mm
Shipping Box Dimensions
476mm x 418mm x 183mm
Weight (Unpackaged)
3.6 Kg
Weight (Packaged)
5.6 Kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Australia RCM; Canada cUL, IC; China CCC; Europe CE TUV; Japan VCCI; Korea KCC; Mexico CoC; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE

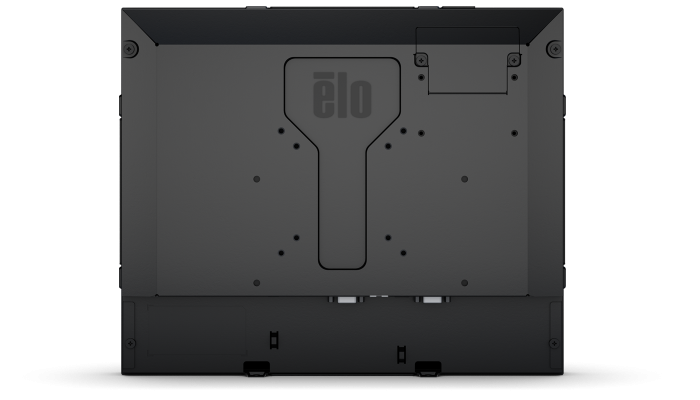

Mounting Options
75 mm and 100mm VESA mount (see Part Numbers for details)
2 Hole mounting interface on all four sides.
Front mount with optional bezel kit (see Part Numbers for details)
Rack mount with optional kit (see Part Numbers for details)
What’s in the Box
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
User Manual CD
Quick Install Guide;
“L” (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
