Easily integrated.
TouchPro® Projected Capacitive (PCAP) units are sealed against dirt and dust to simplify integration into the final enclosure. And with the capability to support touch through glass (available upon request), the 4343L can be sealed into a solution and obtain an IP65 rating on the front side of the unit. The flush mount kit is included to enable a seamless and elegant front kiosk surface. And, as with all Elo open frame touchscreen displays, we control the design and tooling to help ensure future products will be identical in form, fit and mechanical design whenever possible helping you to minimize costly enclosure changes.
Touch ready.

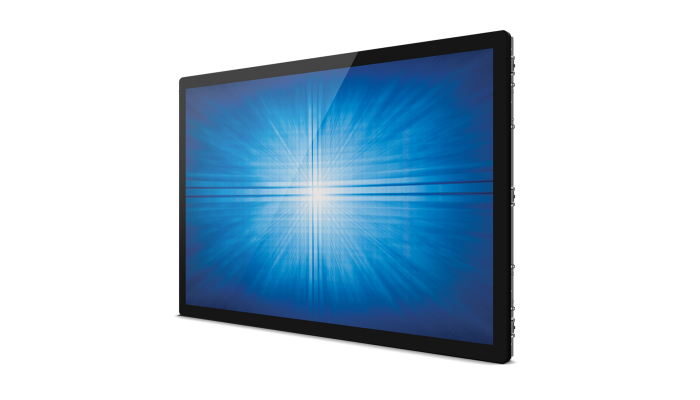

Designed for touch from the start, the seamless zero-bezel 42.5-inch multi-touch display is available with our latest TouchPro PCAP advanced solution offering a lighter 12-point multi-touch screen specifically designed for large format, high-use applications. The 4343L’s TouchPro PCAP offers fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows® 7, Windows 8 and Windows 10. The 4343L touchscreen provides pure glass construction to deliver a clear, bright and long-lasting touchscreen solution.
Commercial grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. Designed and built by Elo, we use our own touchscreens, software and drivers ensuring everything is designed to work together and tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF (demonstrated).
Other features.
- 1920 x 1080 full HD for crisp image and text detail
- Bright, high contrast display with a wide viewing angle that easily attracts and holds the user’s attention
- Multiple available mounting option
- 3-year standard warranty extendable to 5 years
- Regulatory approvals and declarations for use across the globe
- Integrated power supply for use in slim enclosures
- Energy efficient with EnergyStar 7.0 certification and EU Efficiency Class A ratings
Specifications
Part Number(s)
TouchPro PCAP – E220574
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 12 Touch
Touch Interface
USB
Diagonal Size
42.5” diagonal, Active matrix TFT LCD (LED)
On Screen Display
Accessible through switches on the OSD Control Remote accessory.
Controls (side): Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Source, Touch, RTC
Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese
Lockouts: OSD, Power
RTC Settings: The clock/time and the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time is adjusted for automatically and will change the current time by one hour to accommodate daylight savings time.
See user manual for full details.
Aspect Ratio
16:9
Active Area
941.2 mm x 529.4 mm
Resolution
1920 x 1080
Other Supported Resolutions
640×480 60Hz
720×480 60Hz
720×576 50Hz
800×600 56, 60Hz
1024×768 60Hz
1280×720 50, 60Hz
1280×960 60Hz
1280×1024 60Hz
1366×768 60Hz
1440×900 60Hz
1680×1050 60Hz
1920×1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colours
16.7 million
Brightness (typical)
LCD panel: 450 nits
TouchPro PCAP: 387 nits
Response Time-total (typical)
12 msec
Contrast Ratio
1100:1
Input Video Signal Connector
Analog VGA on Female DE-15 connector
HDCP-capable HDMI on HDMI Type A receptacle connector
Input Video Frequency
Horizontal: 31 – 75 KHz
Vertical: 47 – 63 Hz
Input Voltage
100-240 VAC, 50/60 Hz
Input Connector
IEC 60320 C14
Maximum Operating Time
24 hours/day
Power Consumption (Typical)
(Typical at 120V at 60Hz):
ON (monitor + AC/DC adapter): 58.7W
SLEEP (monitor + AC/DC adapter): 1.30W
OFF (monitor + AC/DC adapter): 0.20W
(Typical at 230V at 50Hz):
ON (monitor + AC/DC adapter): 59.2W
SLEEP (monitor + AC/DC adapter): 1.40W
OFF (monitor + AC/DC adapter): 0.60W
Dimensions
999.3 mm x 587.5 mm x 66.4 mm
Shipping Box Dimensions
1220 mm x 790 mm x 250 mm
Weight (Unpackaged)
18.2 kg
Weight (Packaged)
24.1 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Warranty
3-year
Regulatory approvals and declarations
Argentina S-Mark
Australia C-Tick
Canada CUL, IC
China CCC
Europe CE
Japan VCCI
Korea KC, KCC, e-Standby
Mexico CoC
Russia EAC
Taiwan BSMI
United States UL, FCC
International CB
RoHS, China RoHS, WEEE
GLI 27 kV air / 8 kV contact ESD compliant
Energy Star 7.0
UL 60950 ball-drop compliant
IK06 impact compliant
EU Energy Efficiency A rating
Mounting Options

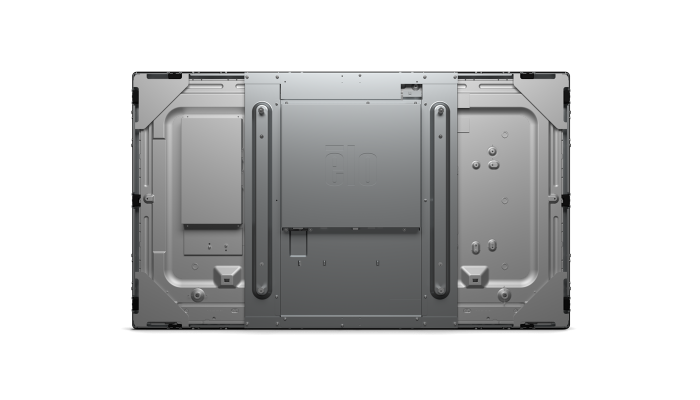

400mm x 400mm VESA 4-hole mounting interface on rear of unit
Flush Mount Brackets available in the Accessories Box
See dimensional drawings for details
What’s in the Box
QIG
OSD Remote
HDMI Cable
VGA Cable
USB Cable (Type A to B)
Power Cable IEC 60320-C13 (NA plug)
Power Cable IEC 60320-C13 (EU/KR plug)
Power Cable IEC 60320-C13 (UK plug)
Power Cable IEC 60320-C13 (AR plug)
Power Cable IEC 60320-C13 (CH plug)
Power Cable IEC 60320-C13 (TW plug)
Power Cable IEC 60320-C13 (JP plug)
Power Cable IEC 60320-C13 (NA plug)
3-pin to 2-pin adapter for JP power cable
Side Mount Brackets x8
Side Mount Bracket Screws x16
