Installation flexibility.
The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.
POS ready.
The 1002L offers optional universal retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
Commercial grade.

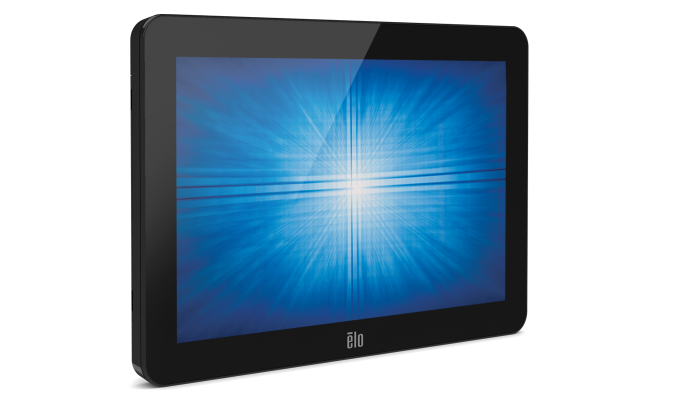

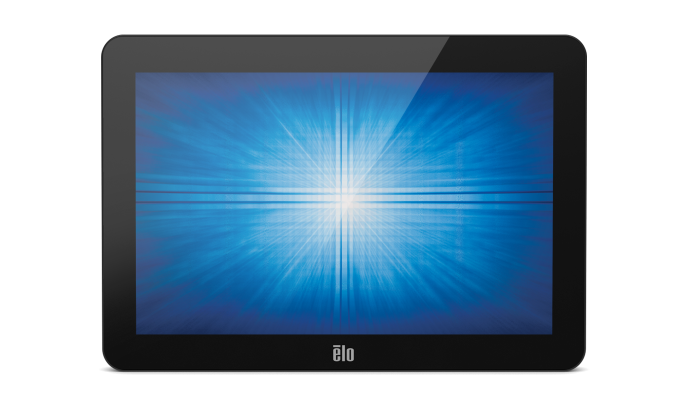

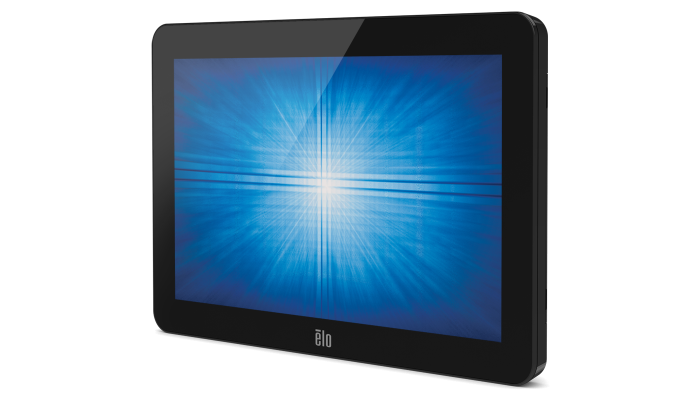

The 10-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
Part Number(s)
PCAP – E045337
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) – 10 Touch
Diagonal Size
10.1” diagonal, Active matrix TFT LCD (LED)
Monitor Thickness
29mm panel depth
Aspect Ratio
16:10
Active Area (mm)
218mm x 136.6mm
Resolution
1280 x 800
Other Supported Resolutions
640 x 480 @ 60Hz
800 x 600 @ 60Hz
1024 x 768 @ 60Hz
1280 x 800 @ 60Hz
1920 x 1080 @ 60Hz
1920 x 1200 @ 60Hz
Viewing Angle
Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total
Number of Colours
262,000
Brightness (typical)
LCD panel: 350 nits
PCAP (DC Power): 315 nits
PCAP (USB Power): 176 nits
Response Time-total (typical)
25 msec
Contrast Ratio
700:1
Input Video Format
Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Input Video Frequency
Horizontal: 31.5 – 60 KHz
Vertical: 60 Hz
Touch Interface
USB
Power Supply
External DC (Power Brick)
Input Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 5.6W
SLEEP: 0.4W
OFF: 0.2W
Max Power Consumption with USB Power: 7W
Speakers
2 x 2W internal speakers
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Monitor Dimensions (without Stand)
254.6mm x 177.3mm x 29mm
Shipping Box Dimensions
310mm x 139mm x 238mm
Weight (Unpackaged)
0.79 kg
Weight (Packaged)
2 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options

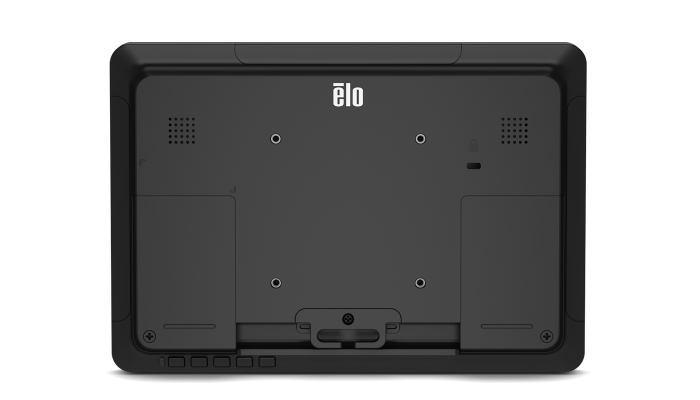

VESA 4-hole 75mm mounting interface on rear of unit
Other Features
Optional wall mount kit available tabletop, shelf- and pole mounts available
2 x 2W internal speakers
Kensington lock slot
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, IC, CE, VCCI, CCC, BSMI
What’s in the Box
QIG, Japan Class-B TM info, User Manual CD, 40W Power Brick with Clipped-in plugs, Mini-VGA to VGA cable (mini-VGA to DE-15 male), USB cable (USB Type A plug to USB Type B plug), HDMI cable, Audio cable, 2 cable clamps, 2 tie wraps
