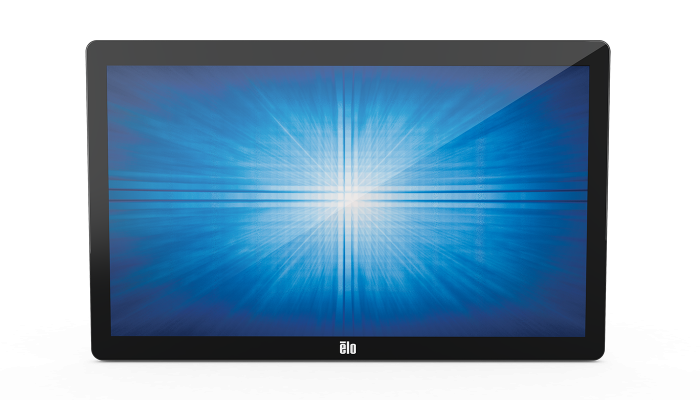

Brilliant Displays from 19 to 27-inches.
The clear glass touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, Elo’s Edge Connect offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
Privacy matters.
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You.
One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility.
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last.
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
Specifications
Part Number(s)
TouchPro PCAP – E351600
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (TouchPro® Projected Capacitive) – 10 Touch
Diagonal Size
21.5” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
467.06 mm x 267.78 mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 400 70Hz
800 x 500 60Hz
800 x 600 56Hz, 60Hz
1024 x 768 60Hz
1280 x 800 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colours
16.7 million
Brightness (typical)
LCD Panel: 250 nits
TouchPro PCAP: 240 nits
Response Time-total (typical)
25 msec
Contrast Ratio
3000:1
Input Video Format
VGA (VGA DB-15 Male connecter cable included)
HDMI (HDMI cable included)
Input Video Frequency
Horizontal: 30 – 82KHz
Vertical: 50 – 75Hz
Touch Interface
USB
Surface Treatment
Clear
Input Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.1 mm pin outer diameter, 6.4mm barrel inner diameter)
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 22.5W
SLEEP: 0.8W
OFF: 0.35W
Speakers
2 x 2W internal speakers
I/O Ports
VGA
HDMI
Headphone Jack
DC jack
USB Type B
USB 2.0 Type A
4x Micro USB
Peripheral Mounting
4x Micro USB side ports (Top, Bottom, Left, Right)
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select, Power LED ON/OFF
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese, Russian, Korean
Lockouts: OSD, Power
Monitor Dimensions (with Stand)
383.8 mm x 526.9 mm x 193.4 mm
Shipping Box Dimensions
617 mm x 477 mm x 260 mm
Weight (with Stand)
6.8 kg
Weight (without Stand)
5.2 kg
Weight (Packaged)
10.8 kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
VESA 4-hole 100mm mounting interface on rear of unit
Warranty
3-year
Regulatory approvals and declarations
Canada CUL, IC
China CCC
Europe CE
Korea KCC
Taiwan BSMI
United States FCC, UL
Japan VCCI
International CB
Australia RCM
Russia EAC
Mexico CoC
Ingress Protection
IPX1 – Front only
Power Cables
Australia Power Cable C13 – Elo P/N: E594067
Ingress Protection
IPX1 – Front only
What’s in the Box
Touchmonitor with stand
Japanese language regulatory information pamphlet
Quick Install Guide
3x Tie wraps
VGA cable
HDMI cable
Touch USB cable
Audio cable
Power brick
NA Power cable
EU Power cable
EEI Label
