Installation flexibility.
The Elo M-Series is available in 10-, 15-, and 20-inch sizes with multiple mount and stand options to ensure installation flexibility with tabletop use as well as wall- and pole-mount in portrait and landscape via standard VESA mount patterns.
POS ready.
The 2002L offers optional retail accessories with easy installation including: a mag stripe reader (MSR), barcode reader, fingerprint scanner, customer-facing display and near-field communication (NFC/RFID) adapter for mobile payments and increased compatibility with the latest point of sale applications.
Screen size.
For retail applications where customer engagement is critical, the 2002L offers 11.5% more screen real estate compared to the 19″ models.
Commercial grade.
The 20-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Sleek and modern widescreen design with built-for-touch reliability
- Energy savings using LED technology
- Full HD Edge-to-edge glass display with anti-glare for retail interiors
- Installation flexibility with mounting in portrait, landscape and table-top orientation, adjustable height stand
- Typical power consumption: 8.7W
- Three-year standard warranty
Specifications
Part Number(s)
PCAP – E396119
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) – 10 Touch
Diagonal Size
19.5” diagonal, Active matrix TFT LCD (LED)
Aspect Ratio
16:9
Active Area (mm)
436.9mm x 240.7mm
Resolution
1920 x 1080 @ 50, 60Hz
Other Supported Resolutions
640 x 480 60Hz
640 x 400 70Hz
720 x 576 50Hz
720 x 400 70Hz
800 x 600 56, 60Hz
1024 x 768 60Hz
1280 x 720 50, 60Hz
1280 x 960 60Hz
1280 x 1024 60Hz
1366 x 768 60Hz, 60Hz RB
1440 x 900 60Hz, 60Hz RB
1680 x 1050 60Hz, 60Hz RB
1920 x 1080 50, 60Hz
Viewing Angle
Horizontal: ±89° or 178° total / Vertical: ±89° or 178° total
Number of Colours
16.7 million
Brightness (typical)
LCD Panel: 250 nits
PCAP: 230 nits
Response Time-total (typical)
20 msec
Contrast Ratio
3000:1
Input Video Format
Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included) HDMI (HDMI cable included), HDCP supported
Input Video Frequency
Horizontal: 31.5 – 60 KHz
Vertical: 60 Hz
Touch Interface
USB
Input Voltage
12VDC +/- 5%; 100-240VAC, 50/60Hz
Input Connector
Coaxial power jack (2.5 mm pin outer diameter, 6.4mm barrel inner diameter)
Power Consumption (Typical)
Monitor + AC/DC adapter
ON: 18.4W
SLEEP: 0.33W
OFF: 0.24W
Speakers
2 x 2W internal speakers
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Brightness, Contrast, Clock, Phase, H-position, V-position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Volume, Mute, Recall Defaults, Audio Select
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Monitor Dimensions (with Stand)
352.3mm x 488.31mm x 193.4mm
Shipping Box Dimensions
252mm x 419mm x 572mm
Weight (Unpackaged)
6.8kg
Weight (Packaged)
9kg
Operating Temperature
0°C to 40°C
Storage Temperature
-20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 95%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options

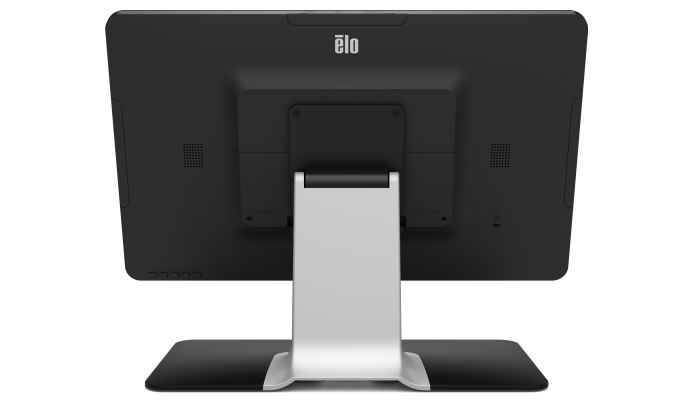

VESA 4-hole 75mm and 100mm mounting interface on rear of unit
See dimensional drawings for details
Other Features
Optional wall mount kit available tabletop, shelf- and pole mounts available
2 x 2W internal speakers
Kensington lock slot
Warranty
3-year
Regulatory approvals and declarations
Canada cUL, IC, Europe CE, Japan VCCI, United States UL, FCC, China CCC, Korea, KCC, e-standby, Australia RCM
What’s in the Box
Mini-VGA to VGA cable (mini-VGA to DE-15 male)
USB cable (USB Type A plug to USB Type B plug)
HDMI cable
Audio cable
User manual CD
Quick Install Guide
Japan class B TM info sheet
Power brick with US, EU, UK, KR, AU and CN clips
