Integrated touch.

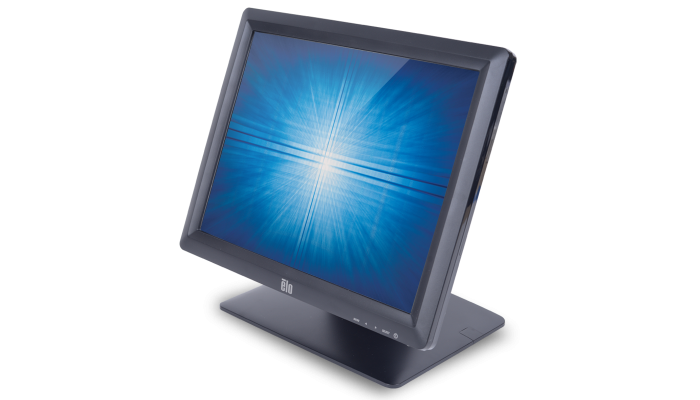

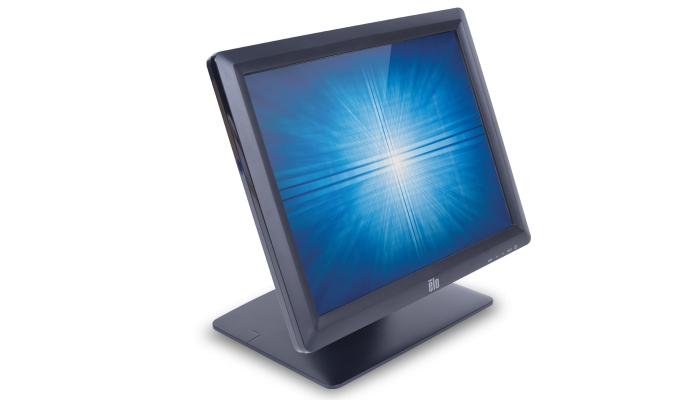

The 15-inch touchscreen monitor delivers the ultimate in optical quality for dry retail and hospitality applications.
MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.
The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touchmonitor ensure table-top security.
Commercial grade.
The 15-inch touchscreen monitor delivers the quality and reliability Elo is known for and is backed by our three-year standard warranty. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
- Sleek and thin design with built-for-touch reliability
- Flexible and space-saving
- 60% Energy savings using LED technology
- Sealed touchscreen against dirt, dust and liquids
- Removable base and mounting options including VESA, wall and pole-mounting
- USB and RS232 serial connections
- Typical power consumption: 12W, internal and external power options
- Three-year standard warranty
Specifications
Part Number(s)
PCAP Black Antiglare – E648912
Enclosure Colour
Black
Touch Technology & Capacity
PCAP (Projected Capacitive) – 10 Touch
Diagonal Size
15” diagonal, Active matrix TFT LCD (LED)

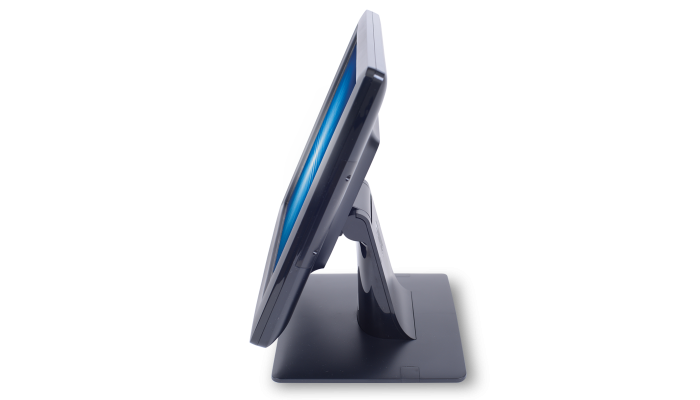

Monitor Thickness
43mm
Aspect Ratio
4:3
Active Area (mm)
228.10mm x 304.13mm
Resolution
1024 x 768 @ 60Hz, 75Hz
Other Supported Resolutions
640 x 480 @ 60Hz, 75Hz
720 x 400 @ 70Hz
800 x 600 @ 56Hz, 60Hz, 75Hz
1024 x 768 @ 60Hz, 75Hz
Viewing Angle
Horizontal: ± 80° or 160° total / Vertical: 70°/80° or 150° total
Number of Colours
16.2 million
Brightness (typical)
LCD panel: 300 nits
TouchPro PCAP: 270 nits
Response Time-total (typical)
23 msec
Contrast Ratio
800:1
Input Video Format
Analog VGA on Female DB-15 connector
Input Video Frequency
Horizontal: 31.5-60 kHz
Vertical: 56-75 Hz
Input Video Signal Connector
Mini D-Sub 15-Pin VGA type
Touch Interface
Serial (RS232) and USB
Power Supply
Optional AC-DC power adapter sold for this monitor
Input Voltage
AC: 100-240 VAC, 50/60 Hz; DC: +12VDC ±5%
Input Connector
AC: IEC 60320 C6 / DC: Coaxial power jack (2.0 mm pin diameter, 6.4 mm barrel diameter)
Adapter Input Connector
IEC 60320 C14
Adapter Input Voltage Range
100-240VAC, 50/60Hz
Input Frequency
Horizontal: 31.5-60.2 kHz / Vertical: 56.3-75 Hz
Power Consumption (Typical)
Monitor Only
ON: 10.5W
SLEEP: 3.0W
OFF: 0.5W
On Screen Display
Accessible through switches along the bottom:
Controls: Menu, Up, Down, Select
Settings: Contrast, Brightness, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color, Temperature, Clock, Phase, OSD timeout, OSD Language, Recall, Defaults
Languages: English, French, Italian, German, Spanish, Japanese, Traditional Chinese, Simplified Chinese
Lockouts: OSD, Power
Monitor Dimensions (with Stand)
358mm x 197mm x 319mm
Shipping Box Dimensions
487mm x 231mm x 485mm
Weight (Unpackaged)
4.3 kg
Weight (Packaged)
7.3 kg
Shipping Weight (with Stand)
7.0 kg
Operating Temperature
0°C to 40°C
Storage Temperature
20°C to 60°C
Humidity
Operating: 20% to 80%; Storage: 10% to 90%
Sealability
Touchscreen sealed to bezel; Touchscreen sealed to LCD
MTBF
50,000 hours demonstrated
Mounting Options
75 mm VESA mount
Capped through-mount holes
Other Features
Security lock receptacle
Warranty
3-year
Regulatory approvals and declarations
UL, cUL, FCC, IC, CCC, CE, VCCI, KCC, e-Standby, CoC, BSMI Mark, CB, RoHS, China RoHS, RCM, Argentinian S-Mark, WEEE
What’s in the Box
QIG, Japan Class-B TM info sheet, User Manual CD, VGA cable (DB-15 male to DB-15 male), USB cable (USB Type A plug to USB Type B plug), power cable, IEC 60320-C5 to NA/EU plug, Stand Base assembly, Filler Plate
